Uploading Data

After completing your video capture, you will need to upload the data to the Sensori website for automated processing into a 3D model.

Register for an account on the Sensori website if you don’t already have one. Your account will need to be activated for data processing, or you will need to be added to an existing project before you can proceed.

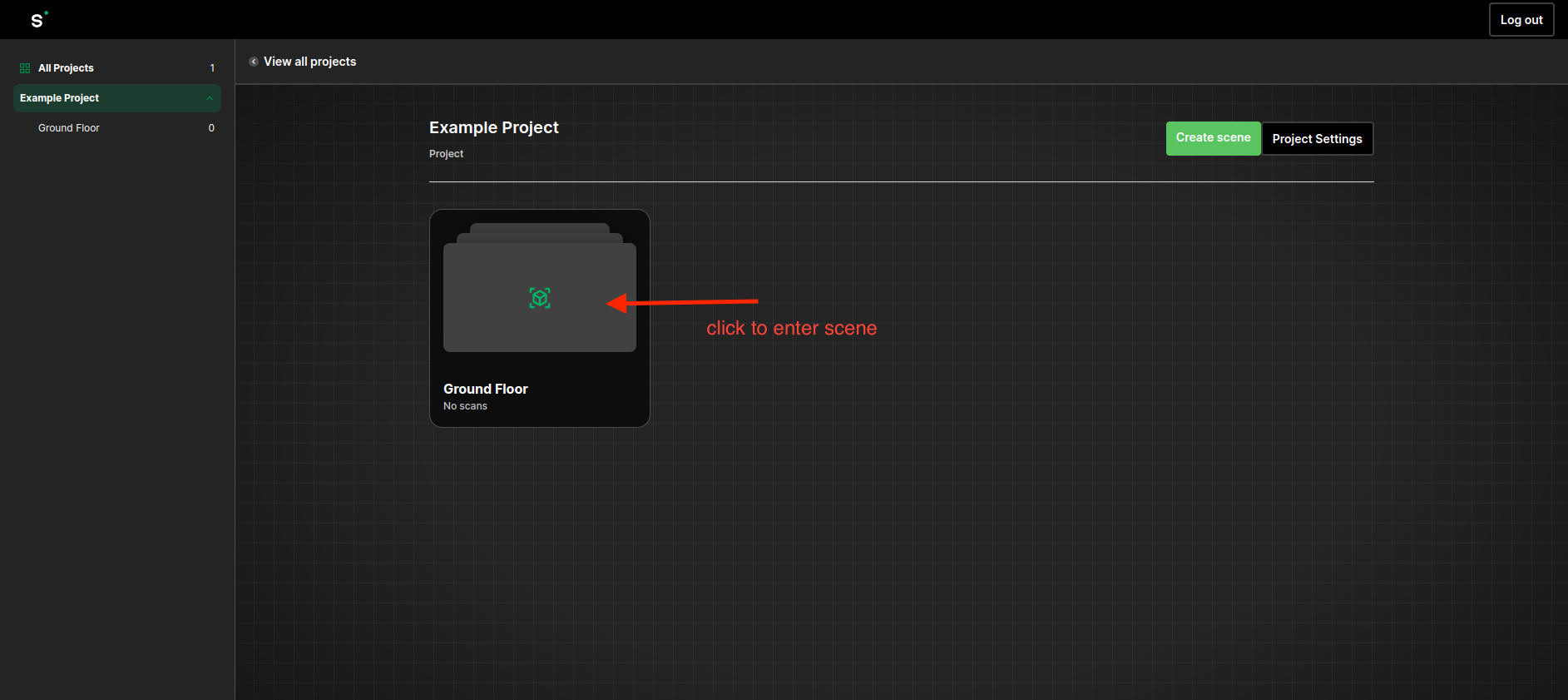

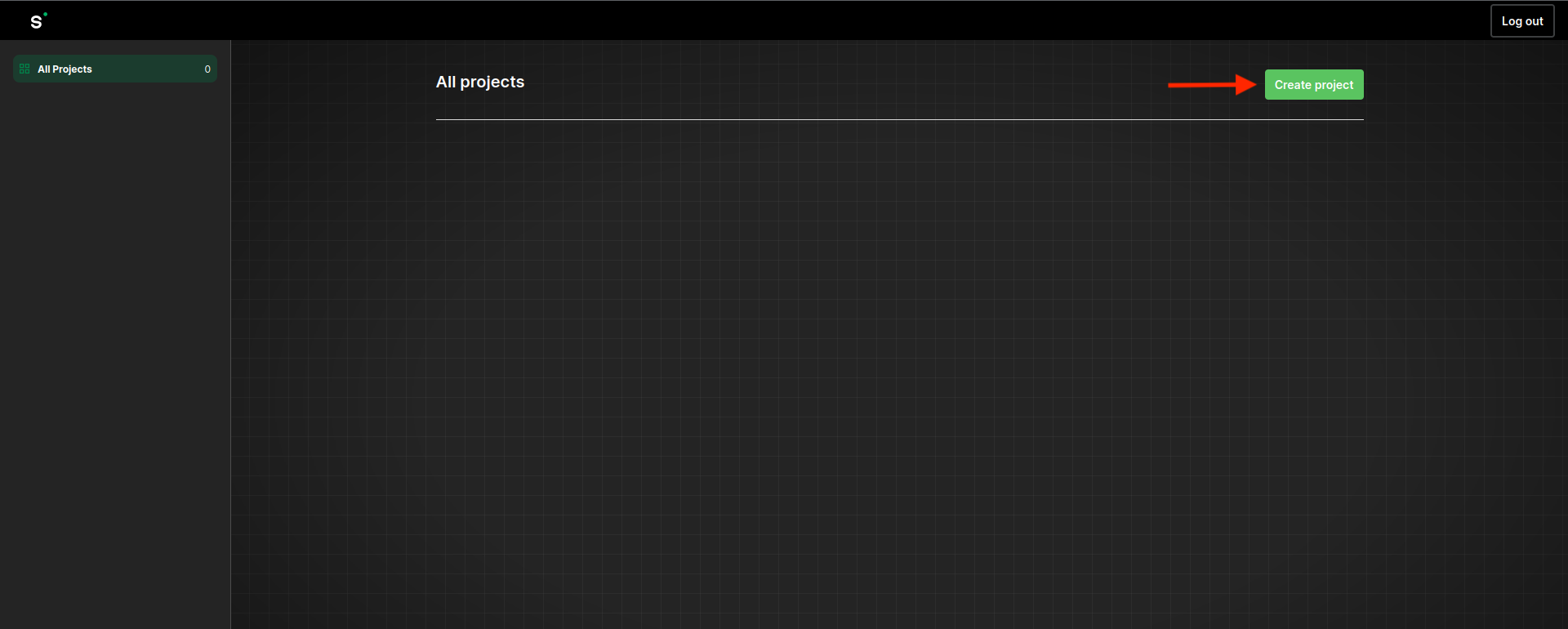

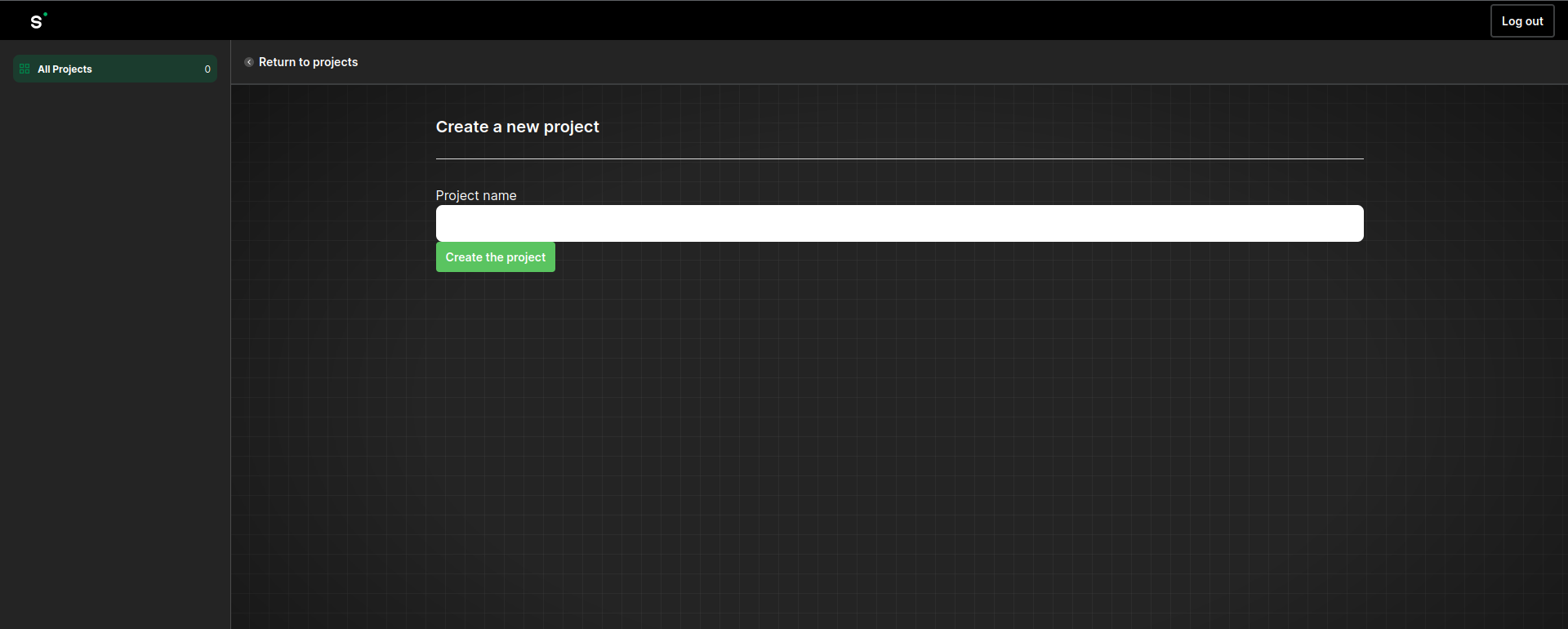

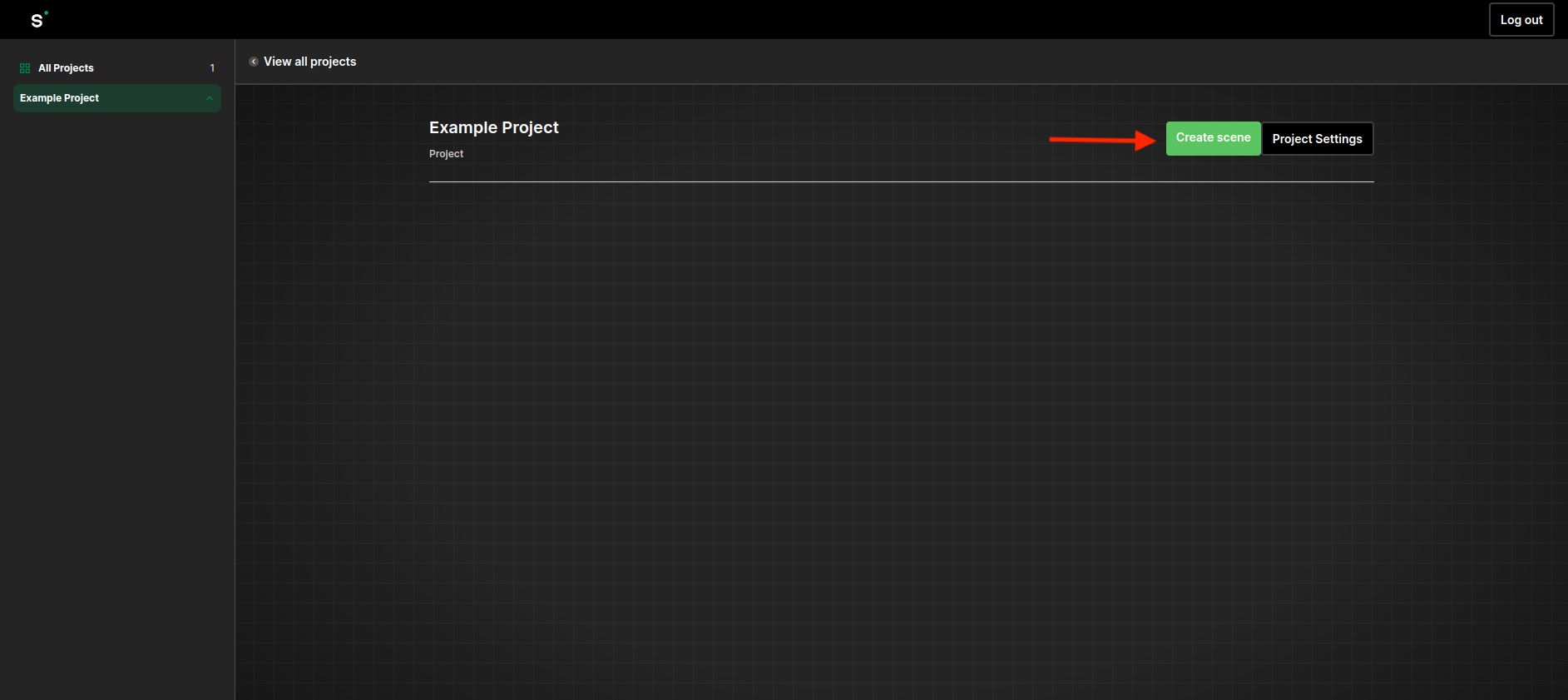

Sensori captures are organised in a hierarchy of projects, scenes, and scans. Create the project and scene hierarchy.

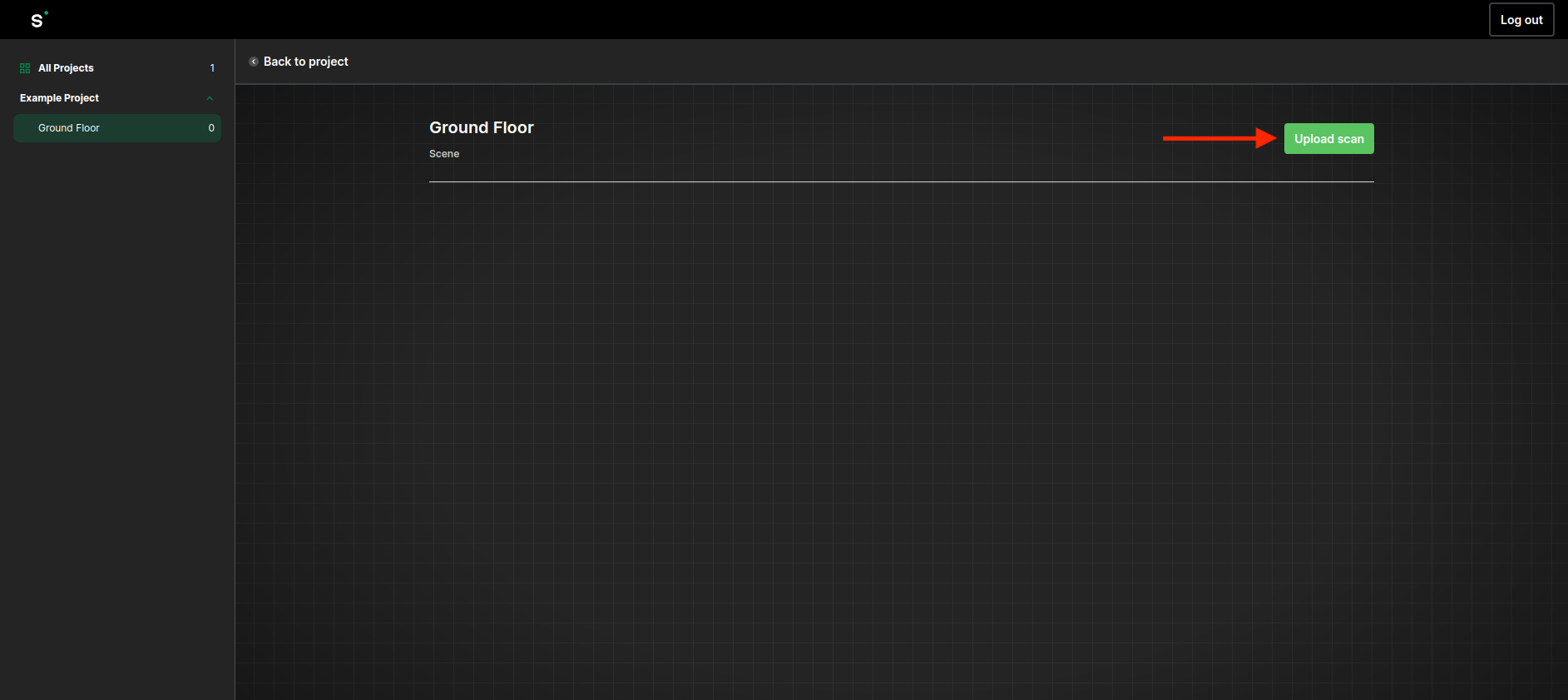

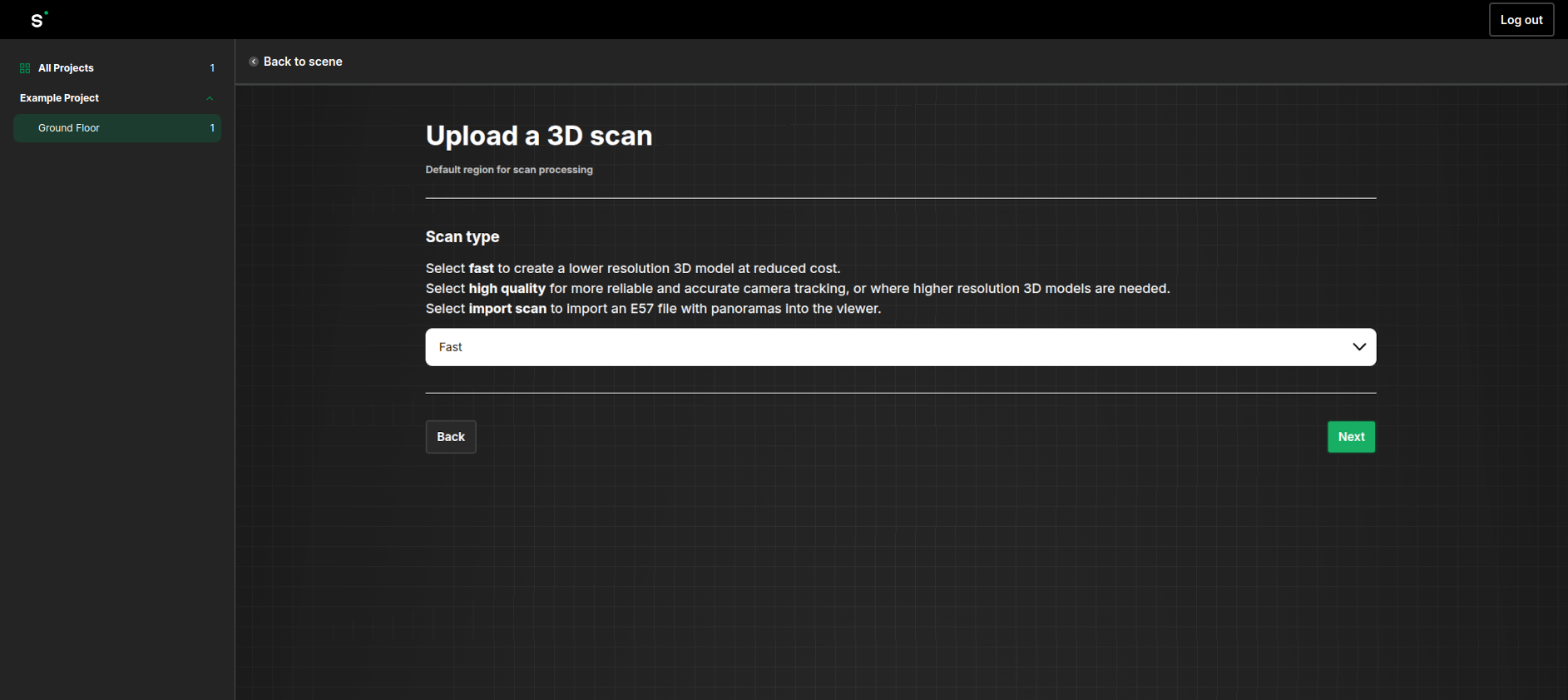

Create a new scan within the scene.

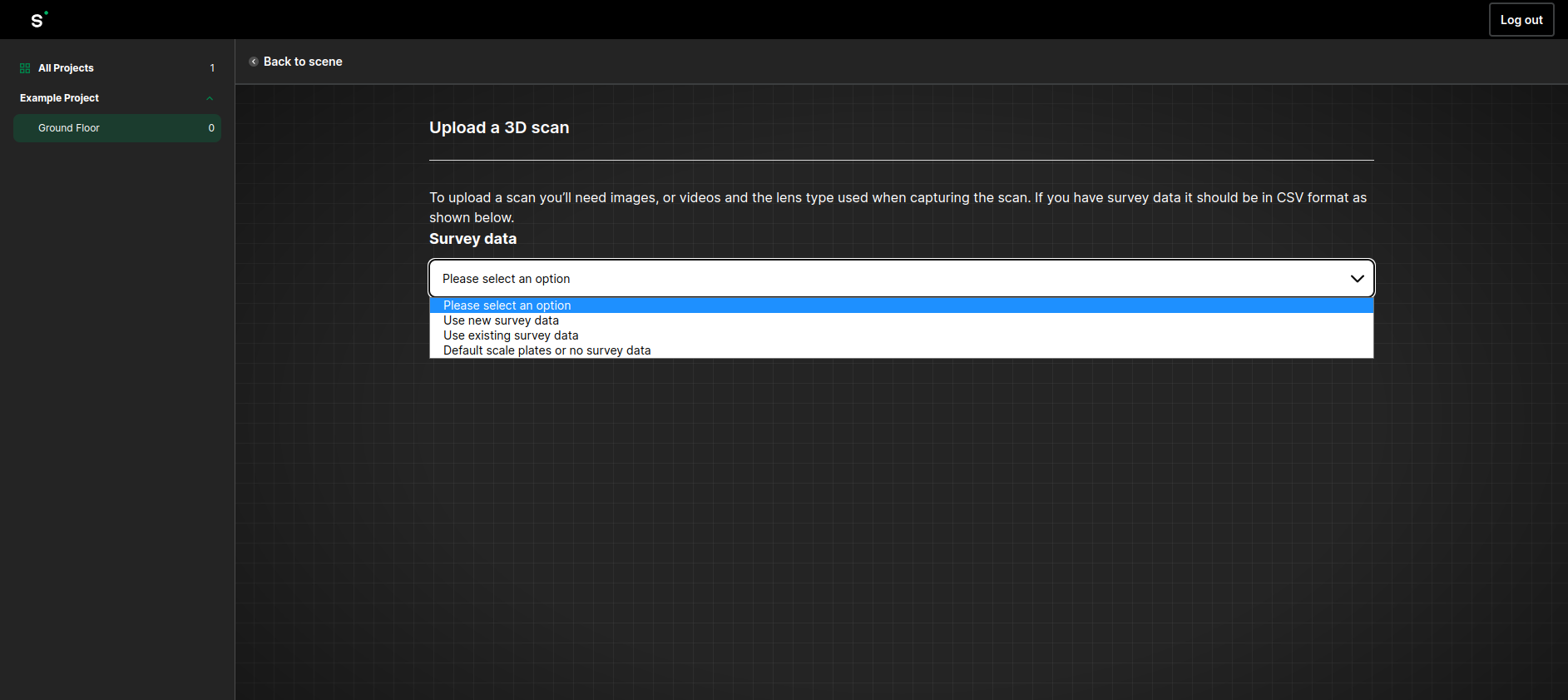

Choose the appropriate survey data option depending on whether you used the origin and scale plates, or surveyed control points.

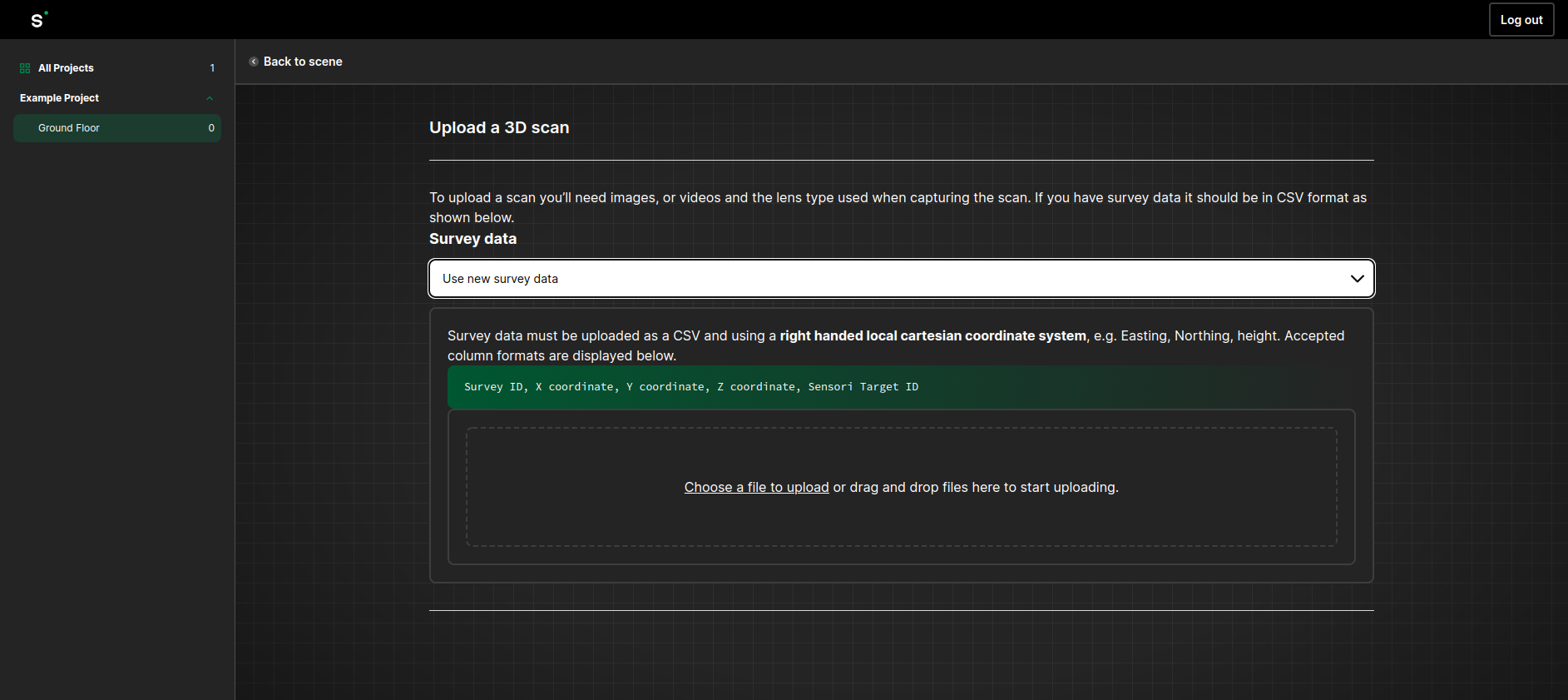

Upload the csv file of control point coordinates if control points were used. See the section on the expected csv format for more information.

Select ‘Fixed Lens’ for the lens type.

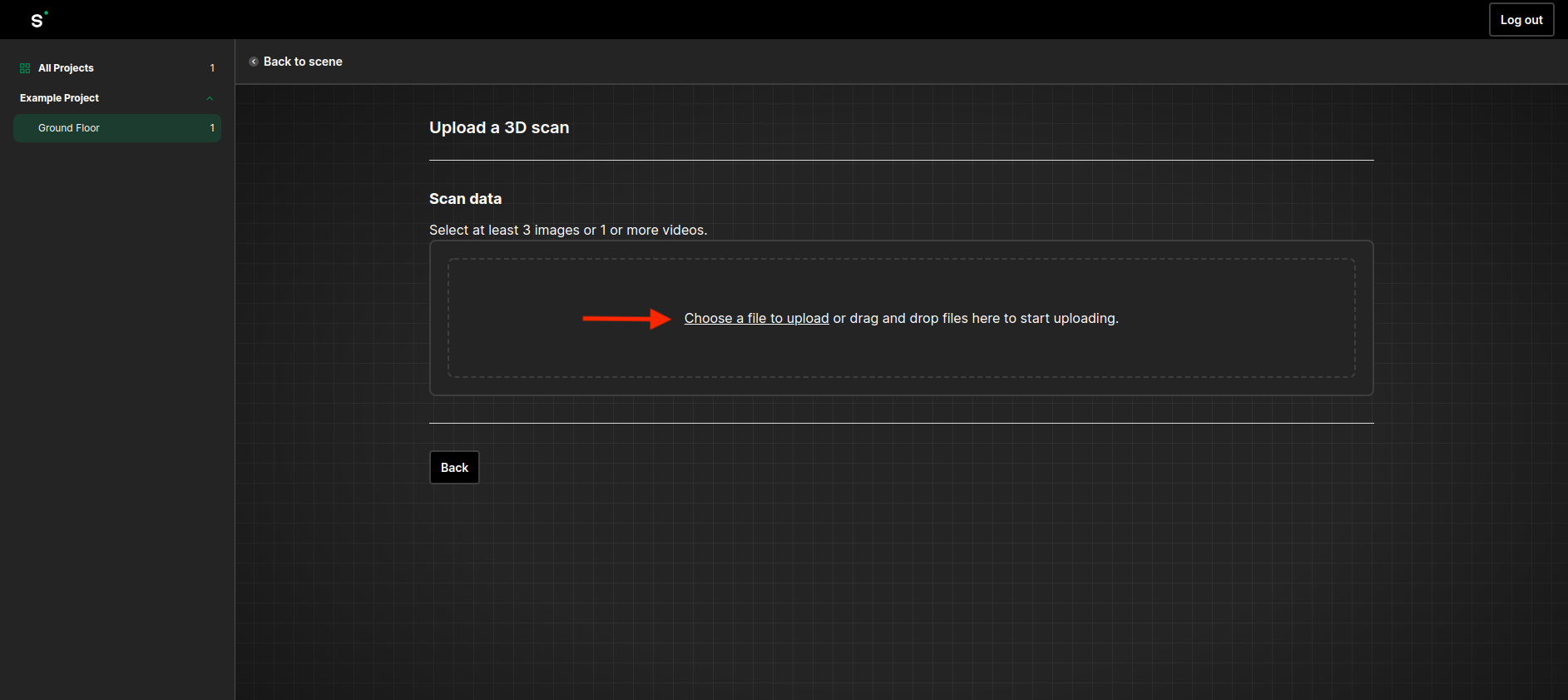

Upload the video files from the camera. All videos or images uploaded together must be part of the same continuous capture. Do not upload separate captures with different target locations to be processed in the the same scan.

After uploading has completed, you will have the option to wait for a count of the number of images to be processed so that you can get an indication of the cost before starting processing. You do not need to wait for this and can click next to start the processing.

Processing of the scan will take approximately 1 hour for every minute of recording time, so this is likely to be anywhere from a few hours to 2 days.
